5-1634503-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5-1634503-1
Datasheet:
Description:

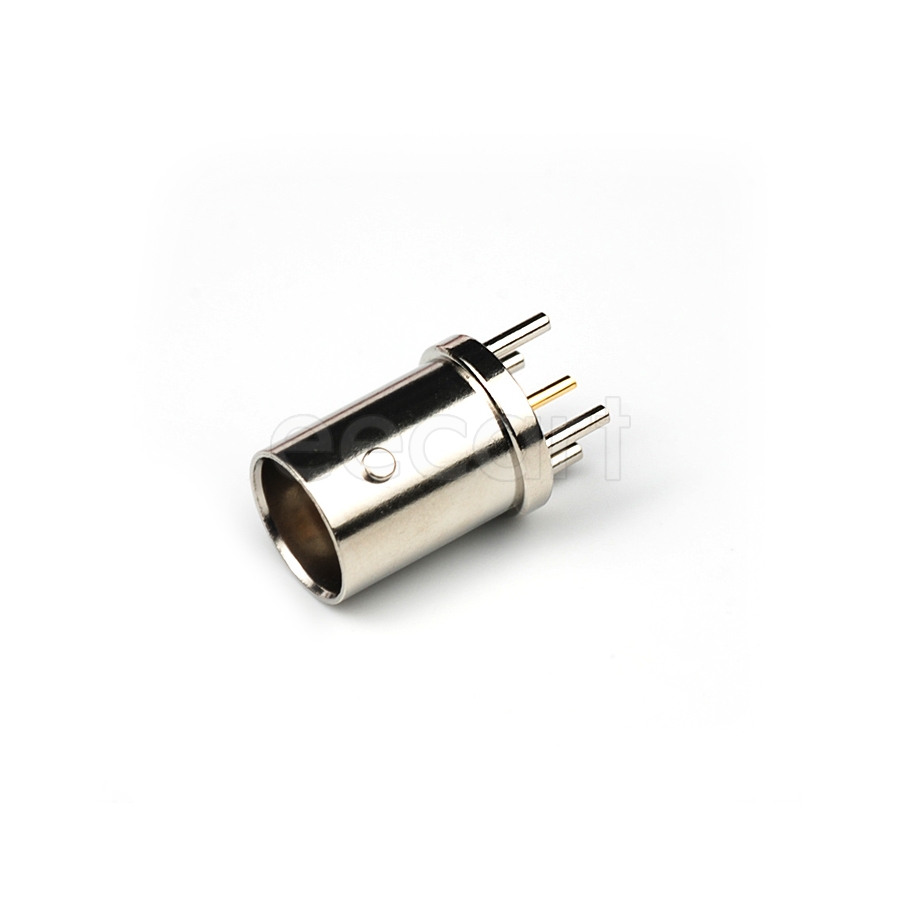

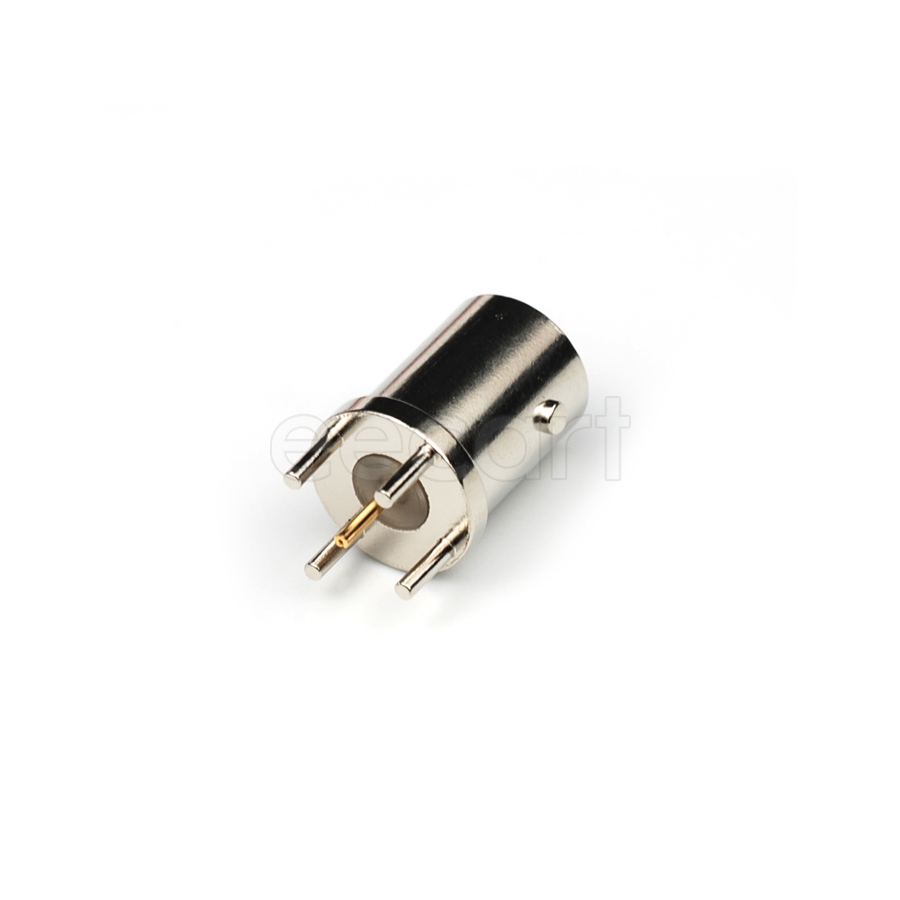

RF / Coaxial Connectors Through Hole BNC 50 Ω
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 500 V |
| Length | 13.7 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 13.7 mm |
| Packaging | Box |
| Depth | 11 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Dielectric Material | Polymethylpentene |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Brass |
| Frequency | 4 GHz |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Female |
| Number of Contacts | 1 |
| ELV | Compliant |
| Body Material | Zinc |
| Connector Type | BNC |
| Max Frequency | 4 GHz |
| Number of Positions | 1 |
| Insulation Material | Polymethylpentene |
| Fastening Type | Bayonet |
| Contact Resistance | 1.5 mΩ |
| Outside Diameter | 14.529 mm |
| Body Plating | Nickel |
| PCB Thickness | 3.2004 mm |
| Tail Length | 4.4958 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Termination | Solder |
| Shield Termination | Solder |
| RF Series | BNC |
